V-Guard FPC GL Series
Solar Water Heater

Name: V-Guard FPC GL Series Solar Water Heater
Brand: V-Guard
Availability: InStock
Rating: 4.8 (46 reviews)

Harnessing nature for a better tomorrow. Titanium infused glass lined tank. Premium flat plate collector. Pressurised and non-pressurised options. 5-year warranty. Best for apartments, villas and commercial buildings.

🛡️5 Year Warranty*

🏗️High-Rise Compatible

💧Glass Lined Tank

🔵Pressurised Option

💰Saves Rs.10,000+/yr

💰 View Price List 💬 WhatsApp Price 📞 99424 87774

Price — Arun Hitech

FPC GL Series — Our Price

All prices include GST 5%. Pressurised and non-pressurised both available. Same price. Call 99424 87774.

Model	Capacity	Persons	MRP	Our Price	Saving	Order
FPC PR-GL 100	100 LPD	1-2 persons	Rs.54,370	Rs.46,000	Save Rs.8,370	Order
FPC PR-GL 200	200 LPD	3-6 persons	Rs.91,870	Rs.76,000	Save Rs.15,870	Order
FPC PR-GL 300	300 LPD	11-12 persons	Rs.1,29,840	Rs.1,10,000	Save Rs.19,840	Order
FPC PR-GL 500	500 LPD	18-20 persons	Rs.1,78,120	Rs.1,55,000	Save Rs.23,120	Order

Technical Specifications

FPC GL — Non-Pressurised Series (1 kg/cm²)

Model	Utility Points	Persons	Pressure	Collectors	Backup Heater	Tank	Pipe Size	Weight (no water)	System Height	Space (NS×EW)
100 LPD	2	2–3	1 kg/cm²	1	2kW (optional)	Glass Lined	1.9 cm (3/4")	87 kg	1.8 m	2.7 × 1.12 m
200 LPD	4	5–6	1 kg/cm²	2	2kW (optional)	Glass Lined	1.9 cm (3/4")	153 kg	1.8 m	2.7 × 2.24 m
300 LPD	5	8–9	1 kg/cm²	3	2kW (optional)	Glass Lined	1.9 cm (3/4")	227 kg	1.8 m	2.7 × 3.40 m
500 LPD	8	14–15	1 kg/cm²	4	3kW (optional)	Glass Lined	2.54 cm (1")	297 kg	1.8 m	2.7 × 4.50 m

FPC GL — Pressurised Series (6 kg/cm²)

Best for apartments and buildings with high-pressure water supply. Supports showers on all floors.

Model	Utility Points	Persons	Pressure	Collectors	Backup Heater	Tank	Pipe Size	Weight (no water)	System Height	Space (NS×EW)
100 LPD	2	2–3	6 kg/cm²	1	2kW (optional)	Glass Lined	1.9 cm (3/4")	87 kg	1.8 m	2.7 × 1.12 m
200 LPD	4	5–6	6 kg/cm²	2	2kW (optional)	Glass Lined	1.9 cm (3/4")	153 kg	1.8 m	2.7 × 2.24 m
300 LPD	5	8–9	6 kg/cm²	3	2kW (optional)	Glass Lined	1.9 cm (3/4")	227 kg	1.8 m	2.7 × 3.40 m
500 LPD	8	14–15	6 kg/cm²	4	3kW (optional)	Glass Lined	2.54 cm (1")	297 kg	1.8 m	2.7 × 4.50 m

Key Technology

What Makes FPC GL Series Special

🔵

Titanium Infused Glass Lined Tank

Works in both soft and hard water. Fired at 800°C–850°C. Excellent corrosion resistance. Easy to clean side-opening design.

☀️

Aluminium Absorber Fins

High quality aluminium with high absorptivity / low emissivity solar selective coating. Ultrasonically bonded to copper riser tubes for maximum thermal efficiency.

🔴

Copper Riser & Header Tubes

Thick gauged high quality copper tubes. Best heat transfer from absorber plate to water in the tank.

🪟

Toughened Glass Top Cover

High transmissivity toughened glass. Specially extruded aluminium channel collector box for durability and aesthetic look.

🧱

High-Density PUF Insulation

Maximum heat retention. Water stays hot all night. Minimum heat loss to surroundings even in cold weather.

🛡️

Sacrificial Anode Rods

Heavy duty magnesium anode rods extend tank life significantly. Proven technology for long-lasting performance.

💰 Annual Electricity Savings — V-Guard Calculation

Electricity for heating 100L (electric heater)4.65 units/day

Annual (300 sunshine days × 4.65 units)1,395 units/year

At Rs.7.5/unit electricity rateRs.10,462 saved

✅ Annual Savings with FPC GL SeriesRs.10,000+ per year!

Features

Key Features — From V-Guard Brochure

🏆 Build Quality

5-year warranty on system (conditions apply)
Titanium infused glass lined inner tank
Heavy duty magnesium sacrificial anode rods
Powder-coated MS angle stand
Precoated GI sheet outer cover
Easy tank cleaning — side opening design

⚡ Performance

Hot water: 50–70°C on clear sunny days
High-density PUF insulation — stays hot longer
Suitable for high-rise buildings
ISI marked backup heater with auto temperature controller (optional)
Works with high pressure municipal supply (pressurised version)

🏠 Best Applications

Apartments and high-rise buildings
Villas with shower bathrooms
Hotels and resorts
Hospitals and institutions
Large commercial buildings
Any building needing pressurised hot water

📐 Installation Notes

System height: 1.8 m from roof (all models)
Non-pressurised: 1 kg/cm² working pressure
Pressurised: 6 kg/cm² working pressure
Space: 2.7 m width × length varies
Needs stronger terrace structure (heavier than ETC)
Pipe size: 3/4" (1" for 500 LPD)

💬 WhatsApp for FPC GL Price 📞 99424 87774

FPC Installations

V-Guard FPC Solar Water Heater — Flat Plate Collector Installations

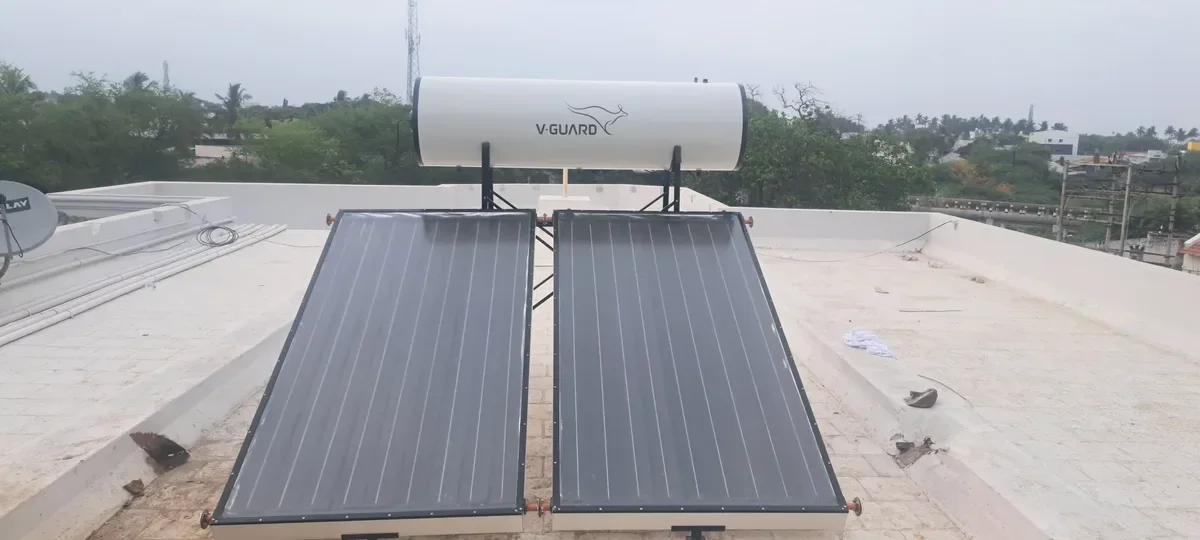

V-Guard FPC solar water heater Coimbatore flat plate collector

🔆 V-Guard FPC — Coimbatore

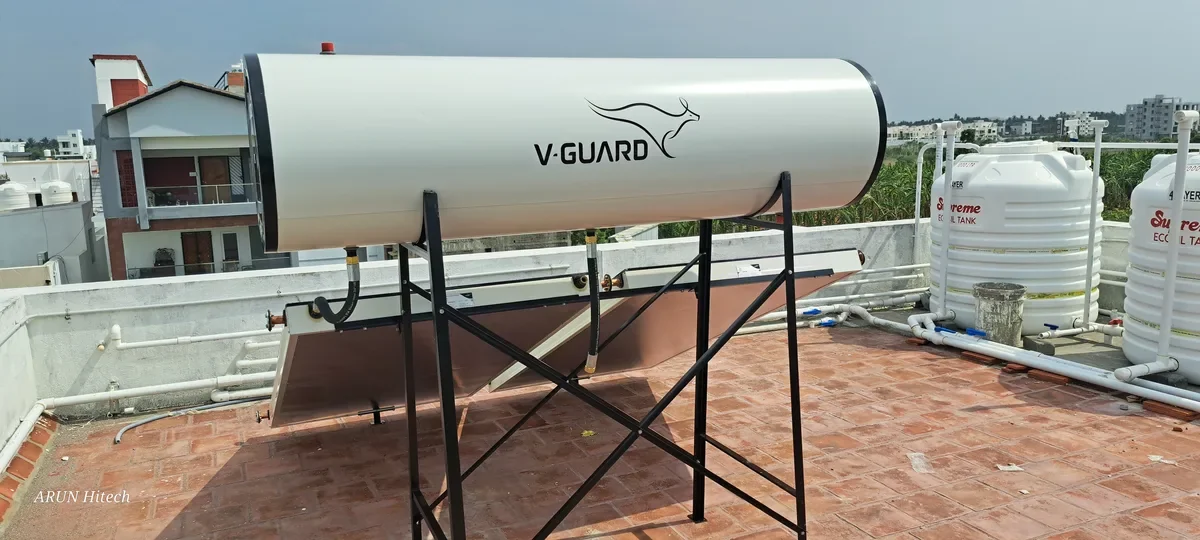

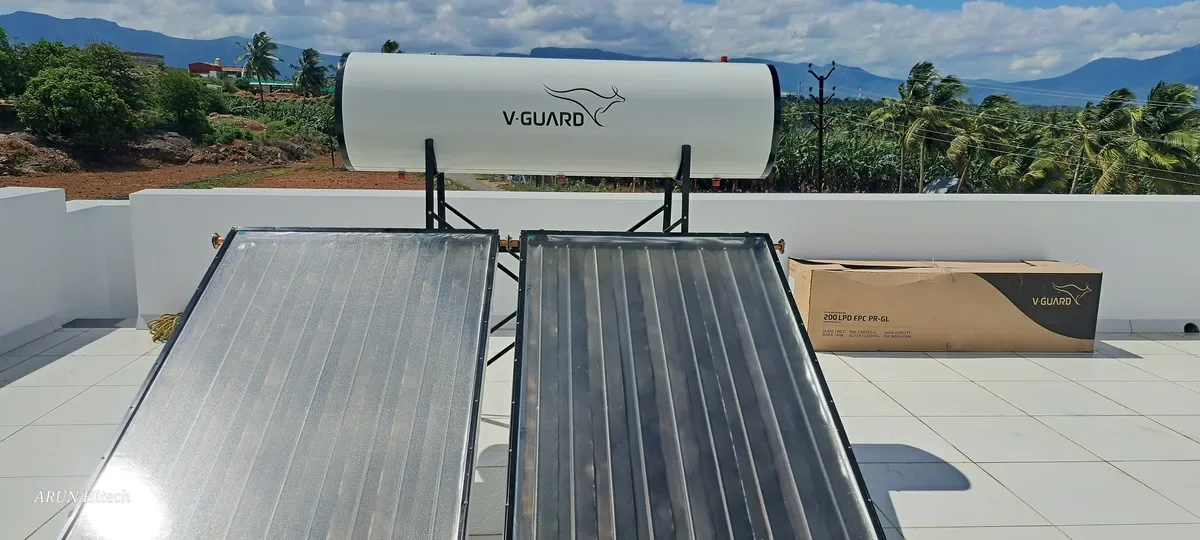

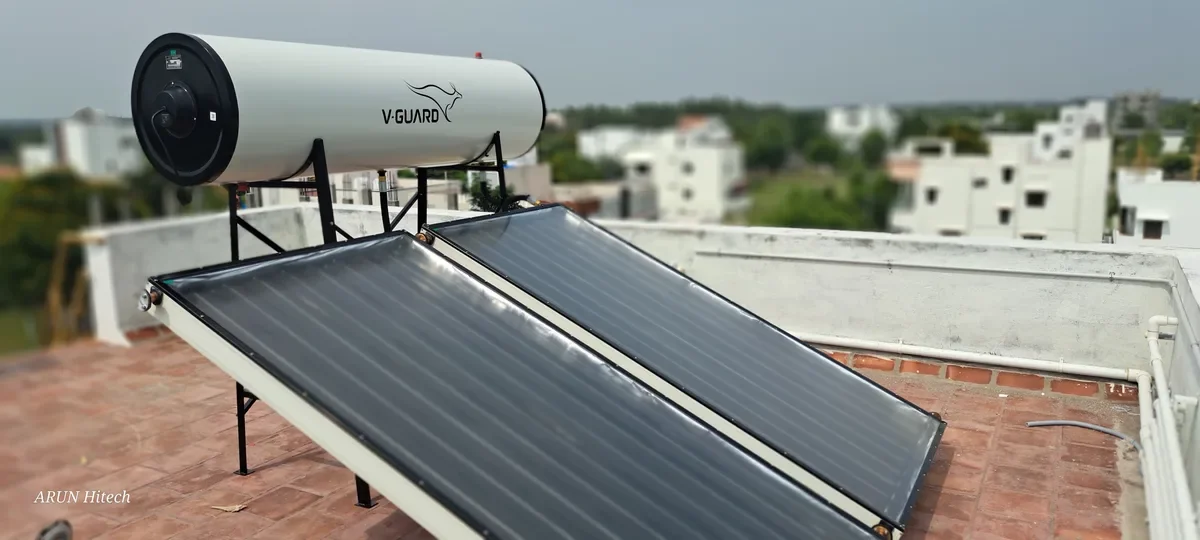

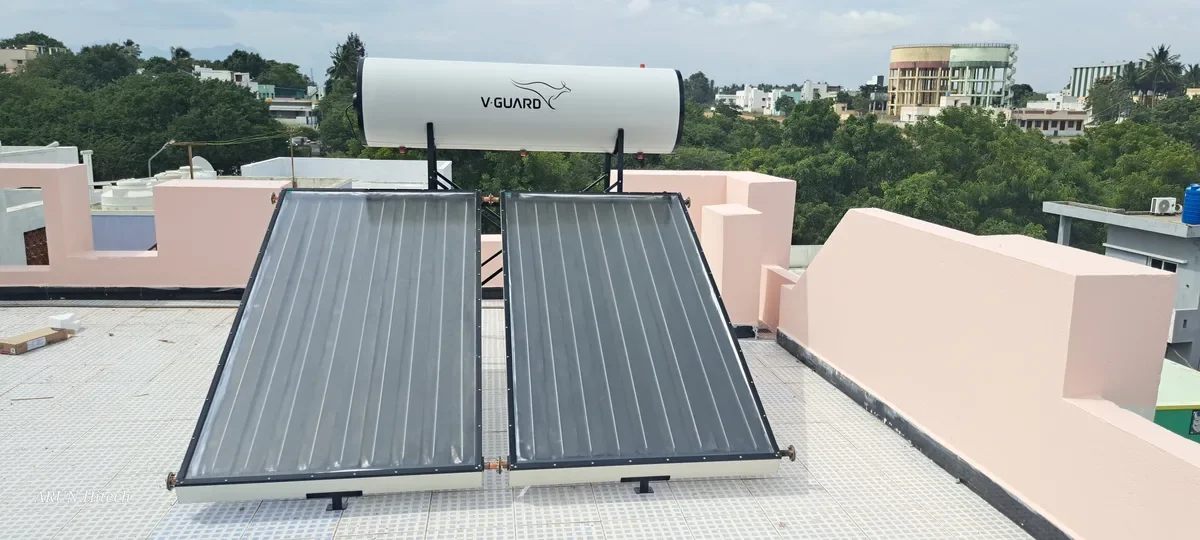

V-Guard 200L FPC flat plate collector solar heater Coimbatore

🔆 V-Guard FPC 200L — Coimbatore

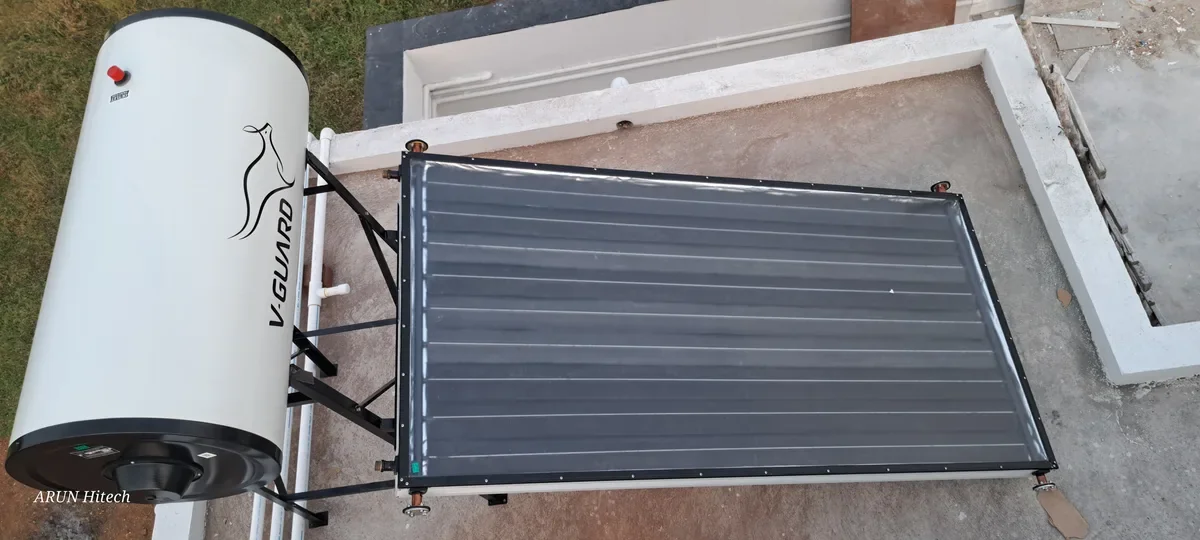

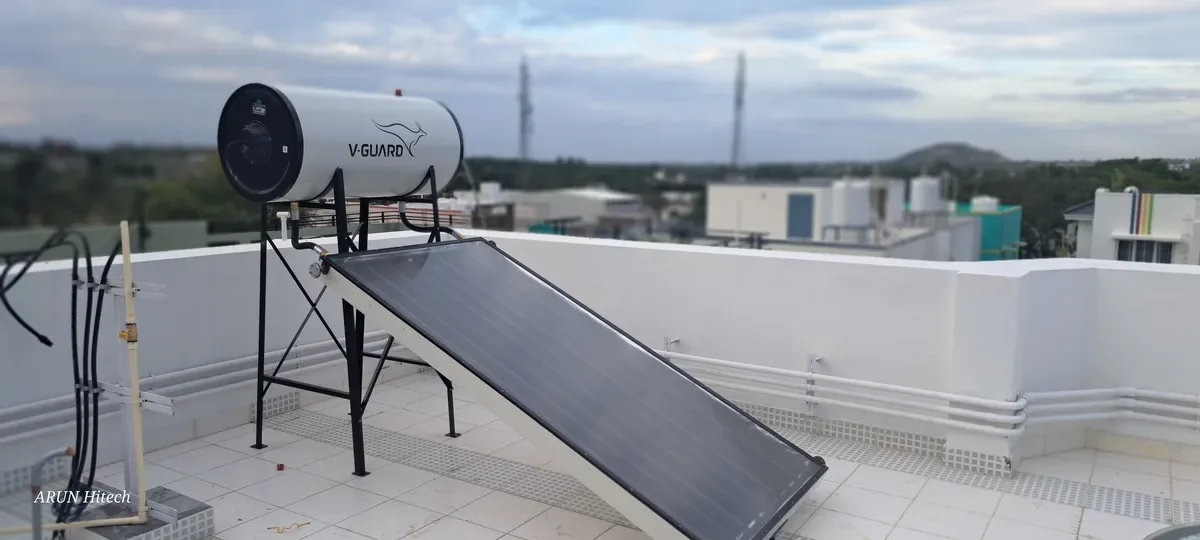

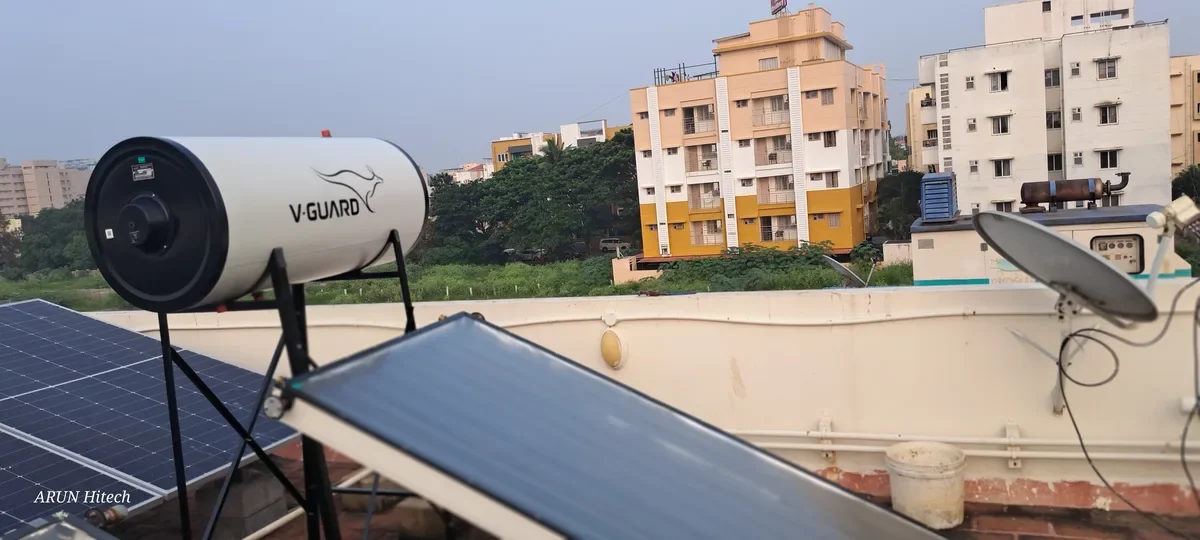

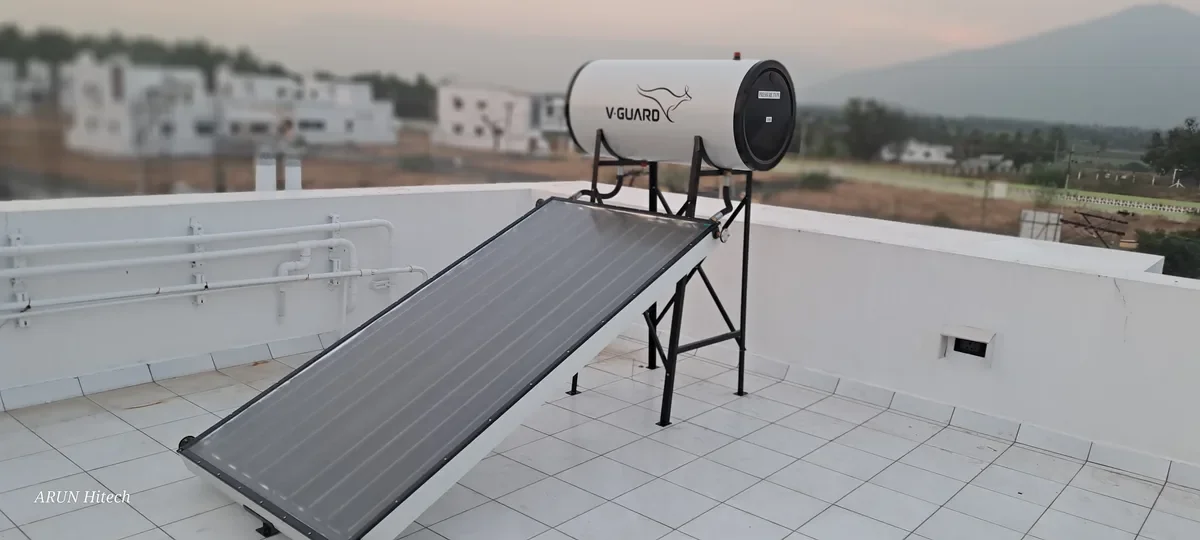

V-Guard 100L FPC solar heater Coimbatore installation

🔆 V-Guard FPC 100L

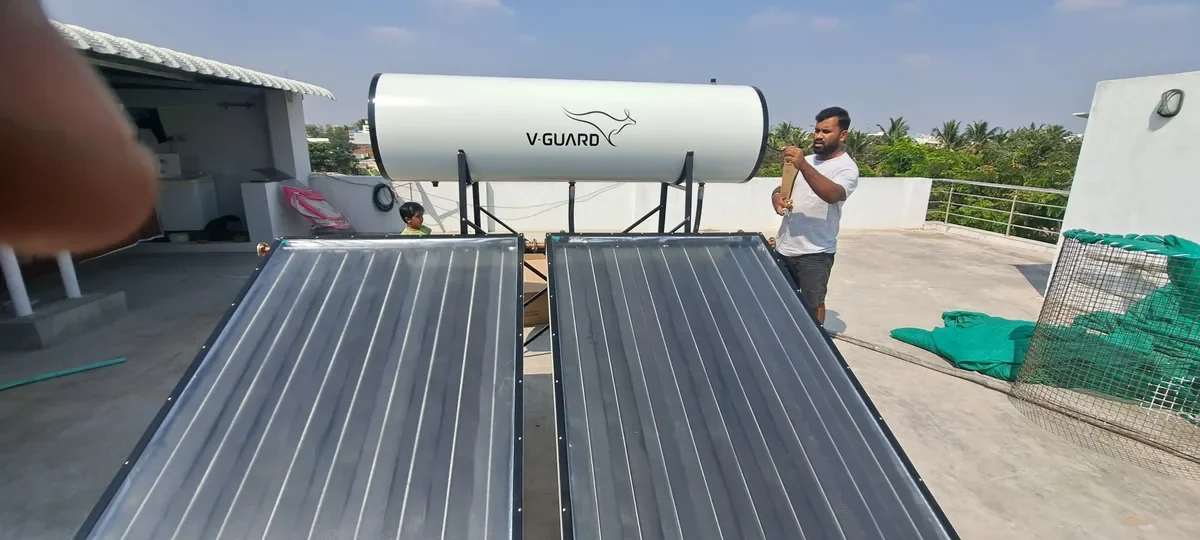

V-Guard FPC solar water heater for home Coimbatore

🔆 FPC for Home — Coimbatore

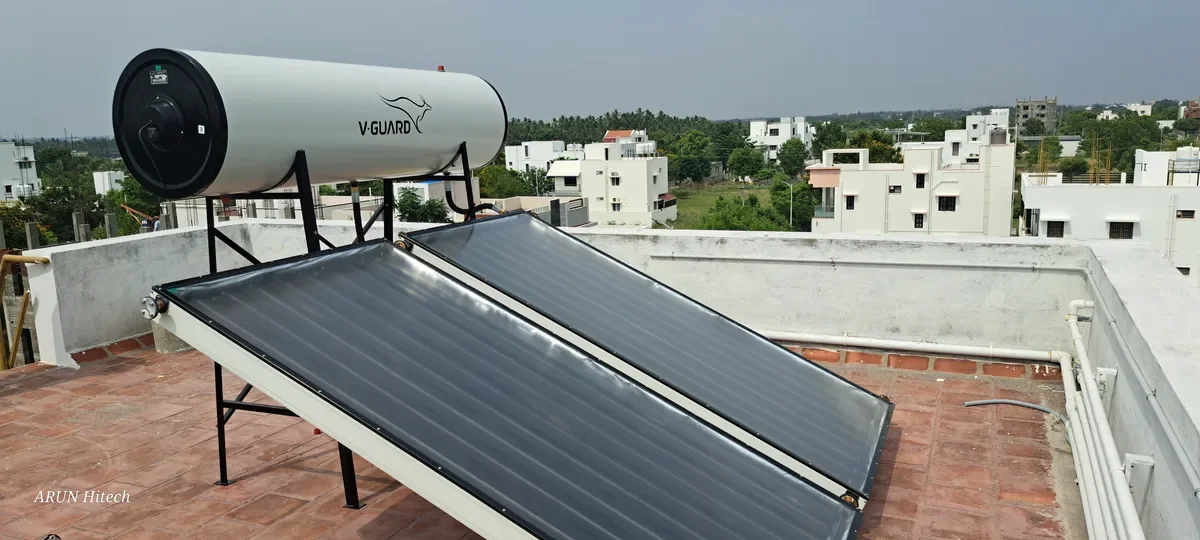

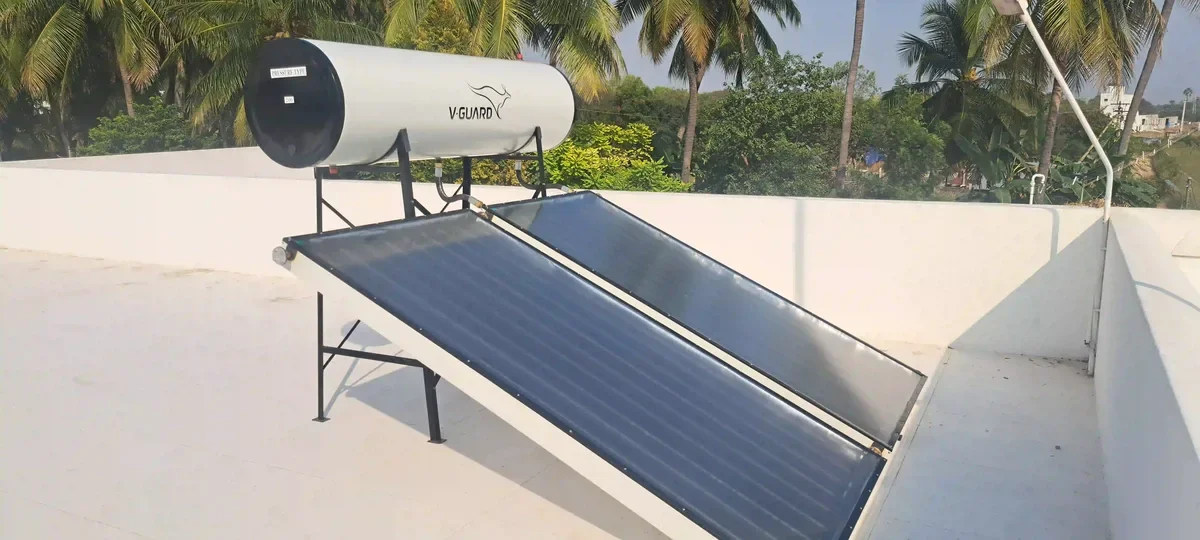

V-Guard FPC solar hot water system Coimbatore installation

🔆 FPC Hot Water System

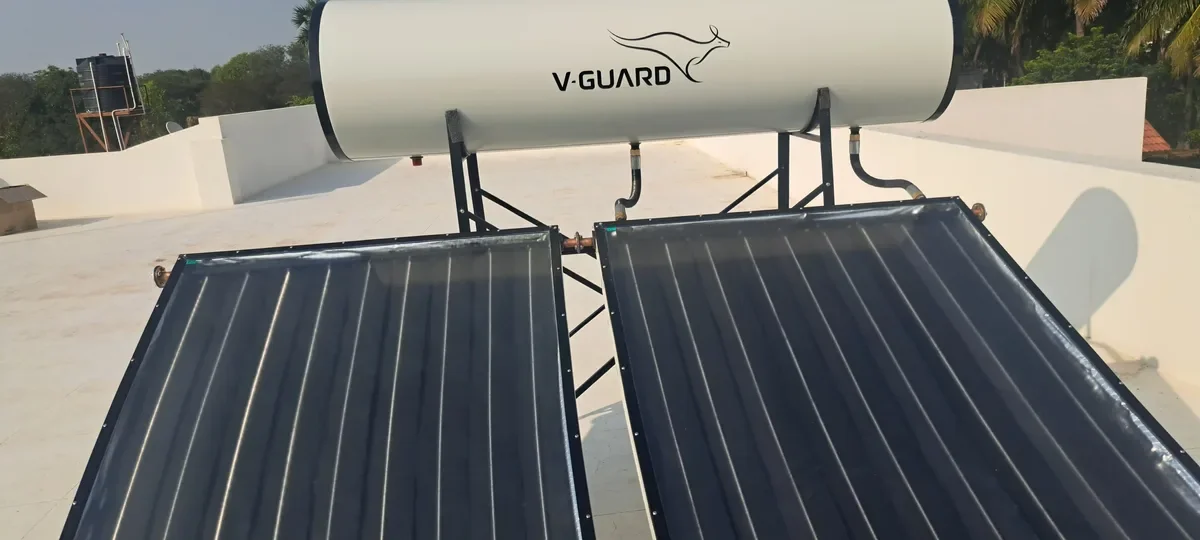

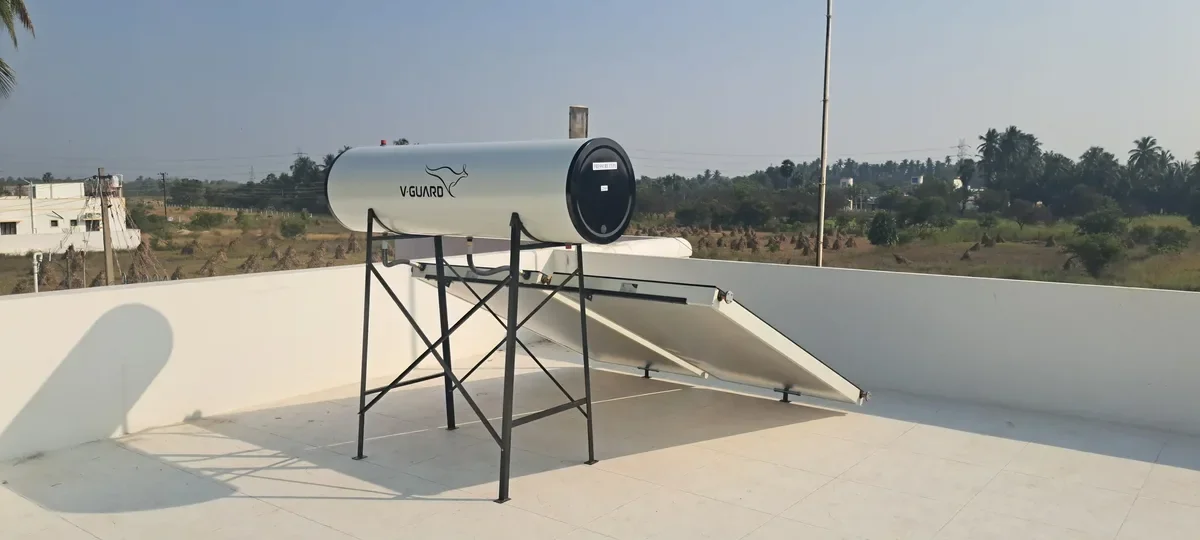

V-Guard FPC flat plate collector solar water heater installation Coimbatore Tamil Nadu by Arun Hitech

🔆 Domestic FPC System

🔆 FPC — Tamil Nadu

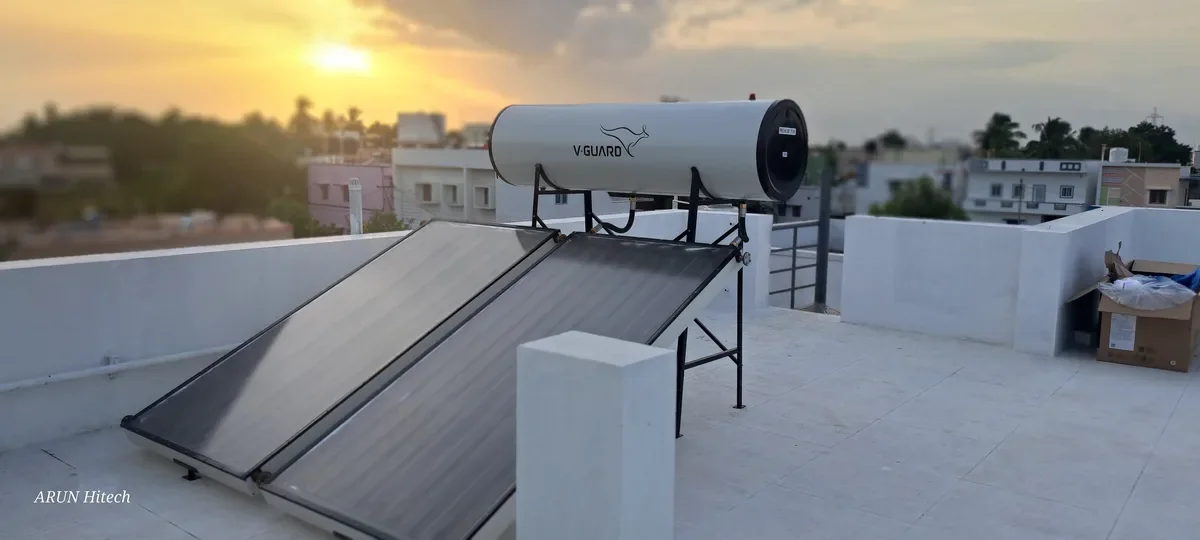

🔆 FPC 200L — Tiruppur

FPC Q&A

V-Guard FPC Solar Water Heater — Questions Answered

What is the difference between FPC and ETC solar water heater?

Answer: FPC (Flat Plate Collector) works better in areas with hard water and moderate sunlight. ETC (Evacuated Tube Collector) is better for high heating efficiency. In Coimbatore, ETC (TRU HOT PRO) is more popular. FPC is preferred for coastal and humid areas. Both available at Arun Hitech from ₹23,500.

What is V-Guard FPC solar water heater price in Coimbatore?

Answer: V-Guard FPC solar water heater price in Coimbatore starts at ₹45,000 for 100L and ₹68,000 for 200L (May 2026). FPC models use flat plate glass collector panels — ideal for hotels and commercial use. Call 99424 87774 for exact pricing.
